I’ll never forget the night my kitchen smelled like a gas station but stayed as cold as a meat locker. I had a tray of rosemary chicken ready to go, but my oven decided it was on strike. I heard that familiar, rhythmic clicking, but the heat never came. Like most DIYers, I jumped straight to Google and ordered the first “common fix” I saw. It was a classic rookie mistake. I spent forty bucks on a new igniter, spent an hour wrestling with rusty screws, and the oven still wouldn’t fire up. I felt like a total amateur because I’d ignored the ‘brain’ of the operation—the control module. Today, I’m going to make sure you don’t repeat my $200 blunder by showing you exactly how to pinpoint the true culprit.
Stop throwing money at parts that aren’t actually broken
Most people think if they hear clicking, the control board is fine and the igniter is the culprit. Or, if they see a glow, they assume the igniter is working perfectly. Neither is always true. We are going to dive into the specific diagnostics that save you time and prevent you from buying a non-refundable electronic part you don’t actually need. Getting this wrong doesn’t just hurt your wallet; it keeps your kitchen out of commission for days while you wait for more shipping boxes. Have you ever replaced a part only to find the problem persisted? Tell me your most frustrating ‘fixed it but didn’t’ story in the comments below! Whether your gas oven takes forever to light up or just sits there in silence, the difference between a $30 repair and a $300 one comes down to a few simple tests. According to data from Consumer Reports, electronic control failures are among the most expensive repairs for modern appliances, which is why getting the diagnosis right is non-negotiable for any homeowner trying to stay on budget.
Is it really worth the hassle of testing the board?
You might be tempted to just buy a new range, especially if your oven control board seems dead. But here is a neighborly secret: often it is just a loose connection or a single failed relay rather than a total system meltdown. I once almost scrapped a perfectly good Jenn-Air because I thought the board was fried, only to realize a mouse had chewed a single wire in the back. Before you give up and browse the new models, we need to look at the resistance readings and voltage outputs. It’s the only way to be 100% sure where the failure lies before you call in a pro or pull out the credit card.
Grab your meter or stop guessing
To figure out if your control board is actually the problem, you have to treat your oven like a living system. Think of the control board as the brain and the igniter as the muscles. If the brain doesn’t send the electrical impulse, the muscles won’t move, no matter how ‘strong’ they are. I remember a humid July afternoon working on an old Samsung range where the owner was convinced the board was fried because the display was flickering like a horror movie prop. I was seconds away from telling them to look into oven repair costs and warranty coverage for a total replacement, but I paused. I pulled the wiring harness and found a tiny bit of surface corrosion on one pin. A ten-second cleaning with a wire brush saved that board. Before you buy anything, you must verify that the board is actually sending power to the components.
The 120-volt heartbeat test
The most definitive way to convict a control board is to check the output voltage. You’ll need to use a multimeter to find a shorted element or check for power. Set your meter to AC volts and carefully probe the terminals on the board that lead to the bake or broil igniter while the oven is turned on. If you see 120 volts at the board but the igniter stays cold, the board is healthy and the igniter is your villain. If the meter reads zero, that brain isn’t talking, and you’ve found your failure point.
Check the sensor before you blame the brain
Sometimes the board is fine, but it’s being fed bad information. If your oven is burning everything or won’t reach temperature, it might be a lying sensor. You need to perform the correct way to test an oven temperature sensor with resistance. At room temperature, most sensors should read about 1100 ohms. If yours is reading 2500 or 50, the board thinks it’s already at 500 degrees and won’t trigger the heat. It’s a $20 part that often mimics a $300 board failure. Much like refrigerator diagnostics, finding the ‘liar’ in the system is the secret to a cheap fix.
Listen for the relay that lost its grip
Modern boards use small black boxes called relays to click the power on and off. If you are dealing with a situation why your oven is clicking but the heat won’t start, those relays are often the culprit. They use a physical arm to close a circuit. Over time, the contact points inside the relay can arc and char, just like a spark plug in a car. If the relay clicks but no power flows through it, the internal contacts are burnt. You can sometimes see a small brown or black scorch mark on the back of the circuit board right where the relay pins are soldered. If you see that ‘toast’ mark, the board’s relay is officially retired.Most DIYers think a digital error code is a “smoking gun.” If the screen says F1, you buy the board, right? In my experience, that’s how you end up with a drawer full of perfectly good spare parts. Everyone says to trust the diagnostics, but I’ve seen “control failure” codes triggered by nothing more than steam from a boiling pot getting into the console. Before you spend a dime, you need to understand that oven repair secrets lie in verifying the environment, not just reading the screen. Have you ever fallen into this trap of replacing a part that wasn’t broken? Let me know in the comments.
Why Your Oven Error Code Is Often a Liar
Industry data from the Association of Home Appliance Manufacturers (AHAM) suggests a significant percentage of control boards returned to manufacturers are categorized as “No Fault Found.” This means homeowners are often misdiagnosing basic wiring or sensor issues as total brain death. A common mistake is ignoring the harness; a loose pin can mimic a dead processor, leading to a massive waste of money on electronic replacements.
Stop Cooking Your Control Board During the Self-Clean
Here is the “oops” factor nobody warns you about: the self-clean button. It sounds like a dream, but it’s actually a control board’s nightmare. The extreme heat required for that cycle often cooks the very electronics responsible for the process. If you want to maximize oven durability, I highly recommend skipping the self-clean and sticking to manual degreasers. Using that cycle is a leading cause for why your oven self-clean cycle is a risk to your control board, especially in modern ranges with tight insulation that traps heat around the circuit traces.
Can You Actually Win Against a Denied Warranty Claim?
If your board dies under a protection plan, don’t assume the check is in the mail. Many companies use the fine print that lets warranty companies deny your fridge repair or oven claim based on “improper installation” or “external power surges.” To stay protected, always use a dedicated surge protector for your high-end appliances. Understanding these essential insights for maximizing your warranty is the difference between a free fix and an out-of-pocket disaster. If you are struggling with a claim, make sure you document every voltage test you performed before the “official” tech arrived; sometimes showing you know the technical specs forces them to honor the contract.I’ve spent years collecting tools, but if you’re just starting, you only need one heavy hitter: a true RMS multimeter. I personally swear by the Klein CL800 because it handles the ghost voltages that often plague older kitchen wiring. If you’re serious about saving money, the one tool that makes testing oven elements 10x faster isn’t a fancy scanner, it’s a meter you actually know how to read. I’ve seen too many people buy the cheapest $10 hardware store special only to have it give a false ‘good’ reading on a dying bake element, leading them to replace a perfectly functional control board instead. Getting the right tool is about more than convenience; it’s about accuracy when the stakes are high.
How do I keep my kitchen running smoothly for the next decade?
It’s not about luck; it’s about the boring stuff. For your fridge, the routine coil vacuuming trick that saves your fridge motor is the single most effective way to prevent a $600 compressor failure. I do mine every six months when I change the smoke detector batteries. According to the North American Technician Excellence (NATE) standards, proper airflow is the number one factor in heat exchange efficiency. If those coils are matted with pet hair, your compressor is basically running a marathon in a parka. Also, take five minutes to perform the dollar bill test to see if your fridge door is leaking cold air. If the bill slides out easily, your gasket is shot, and you’re literally paying the utility company to cool your kitchen floor. Looking ahead, the industry is shifting toward ‘Right to Repair’ legislation making it easier for us to get our hands on official service manuals. We are moving toward a world where using your phone to record diagnostic error codes from your oven will be the standard first step, as AI-integrated apps begin to ‘listen’ to the frequency of your motor to predict a failure before it happens. It sounds like sci-fi, but vibration analysis is already common in industrial settings. For now, stay ahead of the curve by keeping a digital log of your refrigerator diagnostics so you can spot patterns before they become emergencies. My challenge to you is simple: pull your fridge out tonight and vacuum those coils. It’s a ten-minute job that buys you years of peace and keeps your maximize oven durability goals on track by ensuring your entire kitchen ecosystem is balanced.
What the Service Manual Won’t Tell You About Board Failures
After years of wrestling with wiring harnesses, I’ve realized that the most expensive failures are often just bad communication. High-humidity environments, like a steaming kitchen, can cause microscopic oxidation on the control board pins. A simple reseating of the ribbon cable fixes more ‘dead’ boards than you would believe. Also, remember that the secret logic behind your stoves f1 error code isn’t always a death sentence; sometimes it’s just a temporary glitch from a power surge or steam. Finally, always check the ground wire. A loose ground can make a perfectly healthy control board act like it is possessed, throwing random codes and clicking intermittently because the ‘brain’ is losing its electrical reference point.

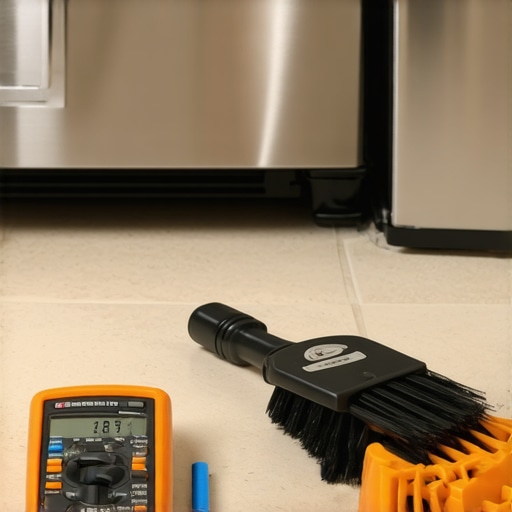

My Survival Kit for Modern Appliance Wars
I don’t believe in buying every gadget on the shelf, but there are three things I never open a back panel without. First, a True RMS multimeter is non-negotiable because standard meters often struggle with the pulsed signals modern digital boards use to communicate. Second, I always keep a bottle of electronics-grade contact cleaner; it is my secret weapon for reviving connections that look fried but are just dirty. Lastly, the one tool that makes testing oven elements 10x faster is a set of insulated alligator clip leads, which allow you to test for continuity safely without needing a second pair of hands. I trust these specifically because they provide the accuracy needed to distinguish between a weak part and a dead one.
Stop Being a Victim of the Planned Obsolescence Cycle
The biggest hurdle in appliance repair isn’t the technical skill—it is the confidence to start. Manufacturers often want you to believe these machines are ‘black boxes’ that only a certified technician can touch, but by mastering oven repair secrets and performing your own refrigerator troubles expert diagnostics, you take the power back. You don’t have to be a master electrician to save your kitchen from the scrap heap; you just need to be observant. By documenting your voltage tests and resistance readings, you are also maximizing your warranty for oven repair by ensuring no service company can give you the runaround about what is actually broken. Which part of your oven has been giving you the most grief lately—the clicking igniter or those mysterious blinking error codes? Let me know in the comments below!
