I’ll never forget the silence that followed the loud, rhythmic thudding coming from my kitchen at 2:00 AM. It was the sound of my refrigerator giving up the ghost. Or so I thought. My first instinct was to panic and start browsing new models online, but then I remembered my old multimeter sitting in the garage. I’d made the mistake once before of ignoring refrigerator troubles until it was too late. Back then, I tossed a three-year-old unit because I assumed a hot compressor meant a dead motor. What a waste of money that was! Today, I’m going to walk you through the exact steps to diagnose the heart of your fridge so you don’t repeat my expensive history. We’re going to find out if your machine is truly a goner or if you just need to stop the constant cycling once and for all.
Stop Guessing and Start Testing the Heart of Your Fridge
The compressor is the most intimidating part of a fridge. It’s that big, black, football-shaped tank in the back that hums—until it doesn’t. Most people see it and immediately call for a pro, fearing they’ll mess something up. But honestly? If you can use a toaster, you can learn to use a multimeter. When you dive into troubleshooting refrigerator problems, you realize that many catastrophic failures are actually just communication breakdowns between electrical components. According to industry data from Consumer Reports, refrigerator compressors are among the most replaced components, yet many ‘dead’ units are actually victims of a failing start relay rather than a broken motor. By grabbing your meter, you’re potentially saving yourself from a $600 labor bill.
Can a DIY Test Really Save You Hundreds?
I get it. You’re worried about getting shocked or misreading a number and buying a part you don’t need. But here is the reality: a compressor replacement is the most expensive repair you can face. If you don’t test it, you might spend money on professional services for a machine that should have been replaced under a lemon law. Or worse, you might replace a $1,500 fridge when a $15 capacitor was the culprit. I once spent four hours trying to fix a cooling issue only to realize I hadn’t even checked the basics of refrigerator diagnostics. Don’t be like past-me. Be the neighbor who knows exactly what’s wrong before the repairman even parks his truck. Have you ever stared at a warm fridge and felt that pit in your stomach? Drop a comment below—are you ready to save your food, or are you already looking at new models?
Pull the Plug and Locate the Nerve Center
Before you touch anything, pull your fridge away from the wall and yank that power cord. Safety isn’t just a suggestion; it’s the difference between a successful DIY project and a trip to the ER. Once the power is killed, look for the small plastic cover on the side of the compressor. This is the ‘nerve center’ where the electricity hits the motor. I remember helping a neighbor who was ready to haul his Kenmore to the dump during a heatwave. He was convinced the motor was shot because it was silent. We opened that cover, and the smell of burnt plastic was overwhelming. It wasn’t the compressor that died; it was the start relay that had literally cooked itself. By understanding refrigerator diagnostics, we saved a $2,000 appliance in ten minutes.
Give the Start Relay a Shake
The start relay is the gatekeeper. It’s a small, usually black or white box plugged directly onto the compressor pins. Pull it off gently. Now, do the ‘shake test.’ If it rattles like a box of broken glass, it’s toast. This is one of the most common refrigerator troubles that homeowners mistake for a dead motor. If it’s silent, you’re not out of the woods yet, but at least the mechanical switch inside hasn’t disintegrated.

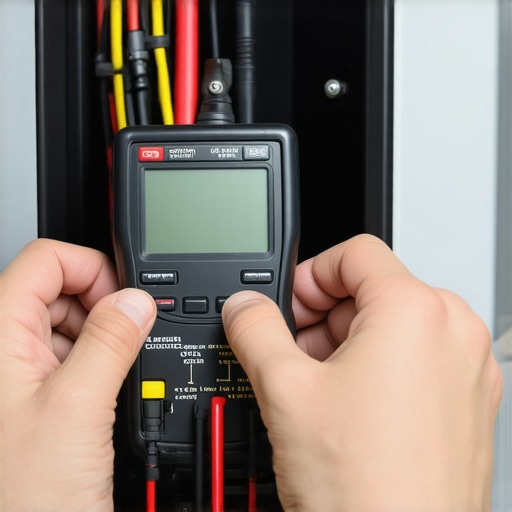

Read the Resistance Without Overthinking It

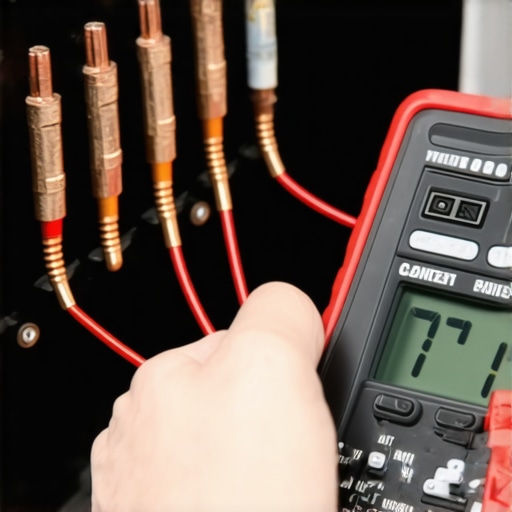

Now, grab your multimeter and set it to the lowest Ohms setting (resistance). You’ll see three metal pins sticking out of the compressor, usually arranged in a triangle. Think of these like the spark plugs in a car. You need to test the resistance between each pair of pins: top to bottom-left, top to bottom-right, and between the two bottom pins. If you get a reading of ‘O.L’ (Open Loop) or ‘0’ on any of these pairs, the internal windings of your motor are broken or shorted. This is often the real reason your fridge compressor is running hot to the touch before it finally quits. Most healthy compressors will show a few ohms of resistance on each pair. If the numbers don’t add up (literally, the two smaller readings should roughly equal the largest reading), the heart of your fridge has likely flatlined.
Watch Out for Short Circuits to Ground
There is one final check that many people skip, and it’s the most important for safety. Touch one probe to a clean, unpainted spot on the compressor’s metal body and the other probe to each of the three pins one by one. If you get any reading other than ‘O.L’, the compressor is ‘shorted to ground.’ This means electricity is leaking into the frame of the fridge, which is why your refrigerator compressor keeps tripping the GFCI outlet. If this happens, do not plug it back in. At this point, you need to check your refrigerator warranty insights to see if a professional replacement is covered. It’s a bitter pill to swallow, but knowing the truth saves you from buying a failing start relay for a motor that is already electrically dead.
Don’t Let the Digital Control Board Boss You Around

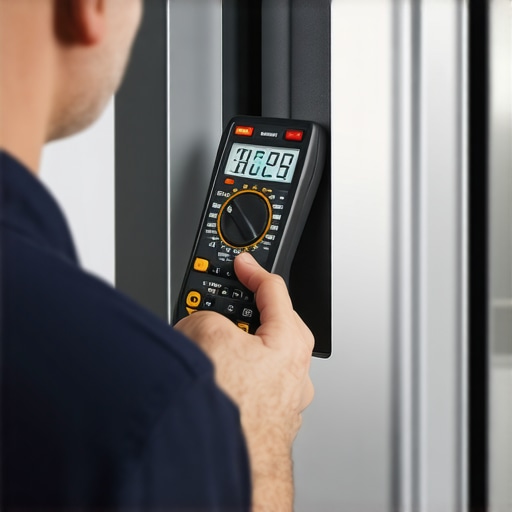

Most homeowners treat the digital error code on their fridge like a divine command. If the screen says ‘Error E1,’ they immediately buy a new sensor. But here is the contrarian truth: the computer is often the last thing you should trust. In my experience, sensors are frequently ‘fooled’ by environmental factors like a slightly open door or a dusty coil. I’ve seen people spend $300 on a control board when the actual problem was just a bit of ice buildup on the thermistor. This is why mastering manual refrigerator diagnostics is so critical. A multimeter doesn’t have an ego, and it doesn’t get ‘confused’ by software glitches; it gives you the raw electrical truth that the onboard computer often misses.
Are Digital Error Codes Actually Making Your Repairs More Expensive?
According to data from the Association of Home Appliance Manufacturers (AHAM), a significant percentage of parts returned under warranty are actually fully functional. This happens because DIYers (and even some pros) follow the error code blindly instead of testing the component itself. For instance, you might see a code for a faulty heater, but the real culprit is a loose wire or a failing relay on the main board. Before you order a single part, you need to learn how to tell if your oven sensor is lying about the temperature or if your fridge thermistor is simply out of range.
Stop Killing Your Kitchen Electronics with the Self-Clean Button
Here is the ‘Oops’ factor that almost no one talks about until it’s too late: the self-clean cycle is a death sentence for modern control boards. I know it’s a built-in feature, but the extreme heat (often exceeding 900°F) is a massive thermal shock to the delicate solder joints in your oven’s ‘brain.’ If you want your appliance to live past its five-year anniversary, you must stop using the self-clean cycle if you want your control board to live. It’s much cheaper to use some elbow grease and a sponge than it is to replace a scorched motherboard that is no longer manufactured.
The Fine Print That Can Sink Your Warranty Claim
We often assume that a warranty is a safety net, but it’s actually more like a hurdle. Many ‘lifetime’ or ‘extended’ plans contain clauses that void the agreement if you’ve attempted any DIY repairs or failed to perform annual maintenance. This is the hidden nuance of maximizing your warranty for oven repair. If you call a technician, you need to be very careful with your phrasing. Using the one word that gets your appliance warranty claim denied immediately can cost you the entire value of the machine. Always have the 3 photos you must take before an appliance repairman arrives ready to go, as they serve as your only defense if the technician claims the damage was ‘user-inflicted.’ Have you ever fallen into this trap and ended up paying for a ‘covered’ repair? Let me know in the comments.
Stop Overcomplicating Your Toolbox

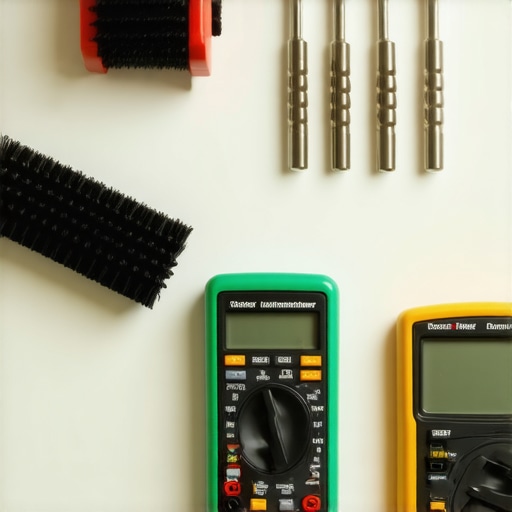

I’ve spent thousands of hours under sinks and behind hot ovens, and I’ve learned that the right tools make the difference between a Saturday morning win and a Sunday night disaster. You don’t need a truck full of equipment. You really only need the ‘Holy Trinity’ of appliance repair: a high-quality multimeter, a set of magnetic nut drivers, and a long-reach coil brush. I personally use a multimeter with a ‘LoZ’ (low impedance) mode because it prevents ‘ghost voltages’ from giving me false readings on control boards. If you’re just starting, even a basic digital model is enough to learn how to use a multimeter to find a short in your stoves wiring without breaking the bank. Most people skip the coil brush, but that $12 tool is what actually keeps the compressor from overheating during a summer heatwave.
How can I keep these machines running for a decade?
The secret to longevity isn’t buying the most expensive parts; it’s establishing a maintenance rhythm. Every six months, I pull my fridge out and perform the 10-minute coil cleaning routine that saves your compressor. It sounds trivial, but technical documentation from North American Technician Excellence (NATE) emphasizes that restricted airflow is the leading cause of premature motor failure in residential refrigeration. If heat cannot dissipate from the condenser, the internal head pressure of the compressor skyrockets. For your oven, you should maximize oven durability with top repair diagnostic strategies in 2025 by checking your door hinges. A sagging door allows heat to escape, which doesn’t just ruin your souffl ; it actively cooks the sensitive electronics in your display panel.
The Future of Kitchen Tech Won’t Save You From Dust
I predict that within the next five years, AI-driven diagnostics will become standard, sending a text to your phone the moment a fan motor begins to draw too much current. We are already seeing this with high-end ‘ThinQ’ and ‘Family Hub’ ecosystems. However, these digital brains are still vulnerable to the same physical laws of thermodynamics. No matter how smart the software gets, a clogged drain or a pet-hair-covered fan will still cause a breakdown. This is why you must learn how to document a failing compressor for a lemon law claim now. If the ‘smart’ tech fails to alert you to a mechanical flaw, you will need a verified log of your maintenance to win a warranty dispute. Don’t let the shiny touchscreens fool you into thinking physical maintenance is a thing of the past.
My challenge for you today: Don’t wait for the silence of a dead motor. Grab a flashlight and check the temperature of the air coming out from under your fridge. If it feels like a hairdryer, your coils are choked. Clean them tonight and feel the immediate difference in how often your fridge cycles. Are you ready to be the person who actually reads the service manual, or are you waiting for the repairman to bill you for a ten-minute job?
The Hard Lessons I Learned While Sweating Over a Dead Compressor
I’ve spent years analyzing the guts of home appliances, and the biggest takeaway isn’t about mechanics; it’s about mindset. First, never equate silence with total failure. A quiet fridge is often just a gatekeeper issue, like a blown capacitor or a bad relay, rather than a seized motor. Second, your multimeter is a truth-teller in a world of vague digital error codes. I’ve seen homeowners get discouraged by a flashing screen when the solution was a simple continuity test away. Finally, remember that documentation is your best friend when dealing with manufacturers. Learning the paperwork trick to getting a fridge repair covered after warranty has saved my readers more money than any actual physical tool ever could. If you don’t track your maintenance, you’re essentially handing the warranty company a reason to say no.
Gear Up for Your Next DIY Victory
You don’t need a professional workshop to handle high-level repairs, but you do need precision. I always recommend a digital multimeter with a backlight; trying to read resistance in the dark corner behind a fridge is a recipe for frustration. I also keep a set of non-conductive probes handy for live-circuit testing. For those moving beyond the kitchen, troubleshooting ovens with diagnostics that save you time and money in 2025 requires a high-temperature thermometer to verify if your control board is actually calibrated. My last essential is a simple notebook where I record the ‘normal’ ohm readings of my appliances while they are healthy—this gives me a baseline that makes future troubleshooting twice as fast.
Take Control of Your Kitchens Future Today
Stepping up to repair your own appliances can feel like a high-stakes gamble, but with the right data, the odds are always in your favor. You are no longer at the mercy of a service schedule or an inflated labor bill. By mastering refrigerator diagnostics to detect issues early and save, you are protecting one of the biggest investments in your home. It’s about more than just fixing a machine; it’s about the peace of mind that comes from knowing exactly how your home works. Don’t let a hum or a click intimidate you—you have the tools, the knowledge, and the strategy to keep your kitchen running perfectly for years to boot. Have you ever been told a repair was ‘impossible’ only to fix it yourself for under twenty dollars? Let me know your story in the comments below!
