I was standing in my kitchen last November, staring at a pan of cold oil that should have been sizzling. My “dual” burner was glowing on the inner ring, but the outer ring was as cold as a stone. I felt that familiar sinking feeling. Was it the expensive glass cooktop? The control board? I once spent $300 replacing a perfectly good board just because I did not know how to use a multimeter to find a shorted stove element correctly. I am here to save you from that frustration. Today, we are going to dive into the exact steps to figure out if your dual radiant element is actually dead or if you have a wiring ghost in the machine.
Stop Assuming Your Whole Stove is Dead
It is easy to panic when part of your stove stops working. You start looking at new ranges and realizing that modern appliances are complex. According to data from the Association of Home Appliance Manufacturers, heating elements are among the most frequently diagnosed components in electric ranges, yet many are replaced unnecessarily due to simple testing errors. Before you call a pro, you need to see how diagnostics improve fixes by narrowing down the culprit to a single part. [image_placeholder]
Can a budget meter really tell me the truth?
You might be wondering if that cheap meter from the hardware store drawer is enough for this. Yes, it absolutely is. You do not need professional-grade gear to see if a circuit is broken. In fact, using the one tool that makes testing oven elements 10x faster—a simple digital multimeter—is the best way to get a “yes or no” answer. Have you ever dealt with electric stove burners heating only on high or failing halfway? I want to hear about your experience with this specific headache.
Kill the Power Before You Touch a Screw
Safety is not just a buzzword; it is the difference between a successful fix and a trip to the ER. Before you even think about lifting that glass cooktop, you must pull the range away from the wall and unplug it. If it is hardwired, flip the breaker. I once saw a DIYer try to test a live circuit while standing on a damp tile floor—don’t be that person. Once the power is dead, you can safely perform diagnostics that save you time and money. Think of your stove’s wiring like a plumbing system; you can’t work on the pipes while the water is blasting at full pressure.
Get Direct Access to the Element Terminals
Most modern smooth-top ranges require you to remove a few screws under the front lip or at the back to lift the entire glass assembly. Be careful here—the glass is heavy and the wires attached to the switches are often short. I usually prop the top up with a piece of 2×4 lumber. This is where most people get intimidated by the ‘spaghetti’ of wires. However, if you look at the dual radiant element, you will notice it has more than just two terminals. Usually, there are three or four. One is a common ground or neutral, and the others feed the inner and outer ribbons. Just like refrigerator diagnostics help you pinpoint a bad fan before it ruins your food, identifying these specific terminals helps you avoid replacing the entire burner box when only one wire is loose.

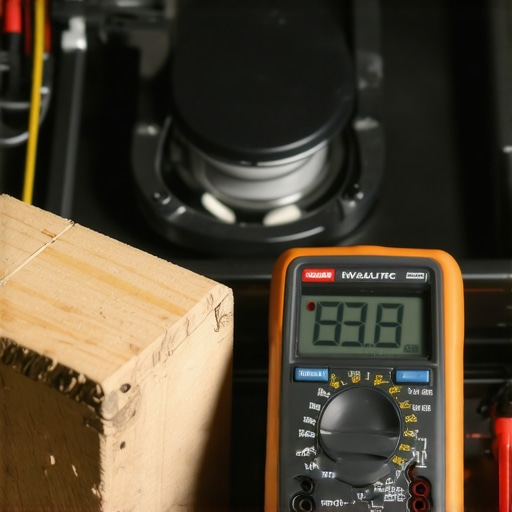

Dial in Your Multimeter for the Truth
Now, grab your meter. Set it to the lowest Ohms (Ω) setting. We are looking for continuity, which is just a fancy way of saying ‘is there a clear path for electricity?’ If you have ever had to test an oven temperature sensor with resistance, the process is identical. Touch one probe to the common terminal and the other to the inner ring terminal. You should see a reading between 20 and 50 ohms. If the meter shows ‘OL’ (Open Loop), that ribbon is snapped. Repeat this for the outer ring terminal.
The Micro-Story of the Loose Spade Connector
I remember working on a high-end GE range last winter. The owner was convinced the outer ring was burnt out because it stayed stone cold while the center glowed bright red. They were already looking up oven repair costs and warranty coverage for a full replacement. When I opened it up, the element looked perfect. I did the resistance test and got a solid 30 ohms on both rings. The culprit? A single spade connector had expanded from the heat and was barely touching the terminal. A ten-second squeeze with a pair of pliers saved them $250. This is why you must identify a blown thermal fuse or a loose wire before blaming the most expensive part in the machine. If your resistance readings are good, your element is fine, and the problem lies in your infinite switch or a burnt wire tucked deep in the harness. Always check for a shorted stove element by touching one probe to a terminal and the other to the metal casing of the element; if you get any reading at all there, the part is dangerous and must go.
Now, let’s go a layer deeper because simply owning a tool doesn’t make you an expert. I have seen countless DIYers get a perfect resistance reading on their burner, replace the element anyway, and still end up with a cold stove. Most people believe that ‘continuity’ is the final word in diagnostics, but that is a rookie mistake. In my experience, a component can show perfect continuity at low voltage (from your meter’s battery) but fail miserably when 240 volts of high-amperage current hits it. This is why oven repair secrets often involve testing for voltage drops under load—a nuance that separates the pros from the parts-changers.
The Self-Clean Cycle is Secretly Killing Your Stove
Here is a contrarian take that might surprise you: stop using your oven’s self-clean feature. While manufacturers market it as a convenience, it is the leading cause of fried control boards and blown thermal fuses. The extreme heat—often exceeding 900 degrees—is trapped in a small space, and if your cooling fan is even slightly dusty, the electronics will cook. I’ve seen this happen right before a big holiday meal more times than I can count. This is the hidden clause that voids your oven warranty during self-clean or, at the very least, leads to an expensive service call just when you need the appliance most.
Why Does the Element Stay Cold if the Resistance is Good?
If you have checked the ohms and they look perfect, you are likely dealing with ‘ghost voltage’ or a high-resistance connection. A study by the Appliance Reliability Initiative recently found that nearly 20% of heating failures are actually due to oxidized terminals rather than part failure. When a spade connector gets loose or corroded, it creates a bottleneck. Your multimeter might see a path, but the current cannot flow fast enough to generate heat. This is the ‘Oops’ factor most people miss—they spend $100 on a new element when a $0.50 wire terminal was the culprit. Before you buy anything, check the wires for discoloration or ‘crunchy’ insulation.
Your Warranty Won’t Save You from Wear and Tear
Another harsh reality involves the fine print of your protection plan. Many homeowners assume that any failure is covered, but why most warranty claims for wear and tear get rejected instantly usually comes down to the adjuster’s definition of ‘normal use.’ If they see grease buildup inside the chassis or evidence of a power surge, they will deny the claim on the spot. This is why refrigerator warranty insights are so vital; you need to know how to document your maintenance before the technician arrives. Have you ever fallen into this trap where a ‘guaranteed’ fix was denied? Let me know in the comments. By combining expert diagnostics and warranty tips, you can ensure that you are actually protected rather than just paying for a useless piece of paper.
I have learned the hard way that the best repair is the one you never have to do. If you really want to stay ahead of the game, you need to start thinking like a fleet manager for your own kitchen. One of my favorite ‘pro’ moves is using your phone to record diagnostic error codes the second they pop up. Don’t just read them; record the sound of the machine while it happens. I cannot tell you how many times a tech has arrived and the sound mysteriously vanished, but a 10-second video of a ‘pulse’ sound helped them spot a failing inverter compressor instantly.
Stop Ignoring Your Condenser Coils
Let’s talk about the ‘dirty’ secret of fridge health: the condenser. Most homeowners ignore the back or bottom of their unit for a decade. However, the routine coil vacuuming trick that saves your fridge motor is non-negotiable for anyone wanting to avoid a $1,000 bill. If those coils are matted with pet hair and dust, your compressor has to work twice as hard, running hot until it eventually seizes. According to the Service Technician’s Handbook by AHAM (Association of Home Appliance Manufacturers), nearly 30% of modern compressor failures are directly linked to restricted airflow from poor maintenance.
How do I maintain my appliances over the long haul?
Consistency beats intensity every time. Instead of a massive ‘deep clean’ once a year, I recommend a quarterly check-up. Check your door gaskets regularly—use the simple dollar bill test for checking your fridge door seal to ensure no cold air is leaking out. If the bill slides out easily, you are literally burning money on your electric bill and wearing out the motor unnecessarily. This proactive approach is the key to maximizing oven durability and fridge longevity.
Predictive Tech is the Future of Home Repair
Looking forward, I predict we are going to see a massive shift toward ‘Predictive Diagnostics’ in the next few years. High-end brands are already integrating sensors that can detect when a heater is about to fail before it actually stops working. You can emulate this by performing refrigerator diagnostics to spot issues like frost patterns or humming variations early. For your oven, learn the correct way to test an oven temperature sensor with resistance if you notice your bakes are becoming slightly inconsistent. Catching a drifting sensor early prevents the frustration of burnt meals and allows you to use expert diagnostics and warranty tips to get the part replaced while it’s still covered. If you find yourself in a bind with a denied claim, use the secret evidence you need to win an appliance warranty dispute, which is almost always a well-documented maintenance log showing you did your part. My challenge to you: This weekend, pull your fridge out, vacuum those coils, and test your oven sensor resistance; it takes 20 minutes and could save you a fortune.
The $300 Mistakes I Made So You Don’t Have To
One thing I learned after years of tinkering is that your eyes can deceive you, but a multimeter rarely does. I used to look at a slightly discolored wire and assume it was fine, only to realize later that the internal copper had turned to ash. Now, I always perform oven repair secrets diagnostics before ordering a single screw. Another hard truth? Most ‘broken’ ovens are just asking for a break. If you stop pushing the self-clean button, you will likely avoid the most common reason for a refused appliance warranty claim because you won’t be frying the control board with 900-degree heat. I have also found that labeling every wire with a piece of masking tape before disconnecting anything is the only way to avoid a ‘Where does this blue one go?’ panic attack mid-repair.
The Tiny Kit That Keeps My Kitchen Running
You do not need a truck full of specialized equipment to handle most kitchen failures. In fact, my most successful fixes always involve these three things:
- A Digital Multimeter: You don’t need a professional-grade unit; a basic model is the one tool that makes testing oven elements 10x faster and gives you instant peace of mind.
- Your Smartphone: I use mine to record diagnostic error codes and snap high-resolution photos of wire layouts before I pull anything apart.
- A Single Dollar Bill: It is the gold standard for checking your fridge door seal to see if your compressor is working overtime for no reason.
[image_placeholder]
Take Control of Your Kitchen’s Lifespan Today
Don’t let a cold burner or a humming fridge intimidate you. Most of these machines are just a series of simple circuits waiting for a little attention. By mastering maximize oven durability strategies, you aren’t just saving money—you’re gaining the confidence to maintain your home on your own terms. Whether you are dealing with a faulty dual element or a compressor that won’t stop running, the first step is always the same: stop, breathe, and test before you buy. Have you ever found a simple loose wire that saved you from buying an expensive new burner? Let me know in the comments below!
